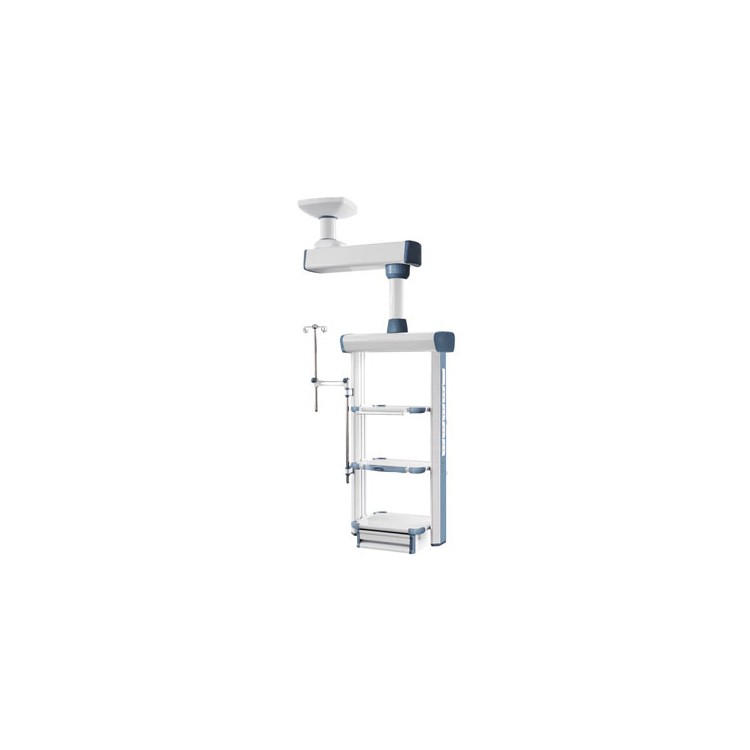

SX-207 single arm mechanical cavity mirror tower

1, power supply: AC220V, 50Hz;
2, cross arm range (radius): 750mm (can be configured according to the requirements of the hospital)
3, horizontal rotation angle: 0～340°, horizontal arm and terminal box can be rotated separately or simultaneously;
4, net weight ≥120kg;
5, Instrument platform: 3 layers (adjustable height) size For:450X350 、 460X380,Round corner anti-collision design,
  Aluminum alloy sheet, surrounded by international standard side rails,
6、Gas interface configuration (2 oxygen, 2 negative pressure suction, 1 air): a, the color and shape of the interface are different, it has the function of preventing wrong connection; b. The number of insertion and removal is more than 20,000; c. The use of secondary sealing, with three states (pass , Break, pull), can be repaired with air;
7, power socket: 7, 220V, 10A;
8, equipotential ground terminal: 1 piece;
9, 1 stainless steel adjustable infusion rod holder;

10, the main material is made of high-strength aluminum alloy profiles;

11, the surface treatment adopts electrostatic spraying;
12, ceiling-mounted installation, stable and firm.
