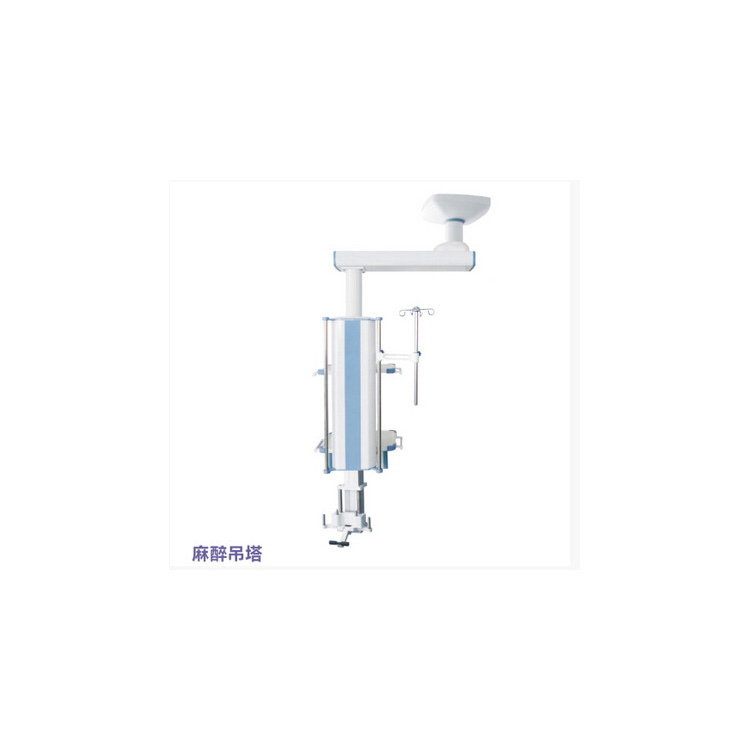

SX-210 single-arm electric anesthesia tower

  1, power supply: AC220V, 50Hz;
  2, cross arm range (radius): 750mm (can be configured according to the requirements of the hospital)
  3, horizontal rotation angle: 0～340°, horizontal arm and terminal box can be rotated separately or simultaneously;
  4, net weight ≥120kg;
  5, instrument platform: 1 layer (adjustable height), Round corner anti-collision design,Aluminum alloy sheet, surrounded by international standard side rails,
  6、Gas interface configuration (2 oxygen, 2 negative pressure suction, 1 air): a, the color and shape of the interface are different, it has the function of preventing wrong connection; b. The number of insertion and removal is more than 20,000; c. The use of secondary sealing, with three states (pass , Break, pull), can be repaired with air;
  7, power socket: 7, 220V, 10A;
  8, equipotential ground terminal: 1 piece;
  9, 1 stainless steel adjustable infusion rod holder;
  10, the main material is made of high-strength aluminum alloy profiles;
  11, the surface treatment adopts electrostatic spraying;
  12, ceiling-mounted installation, stable and firm.
