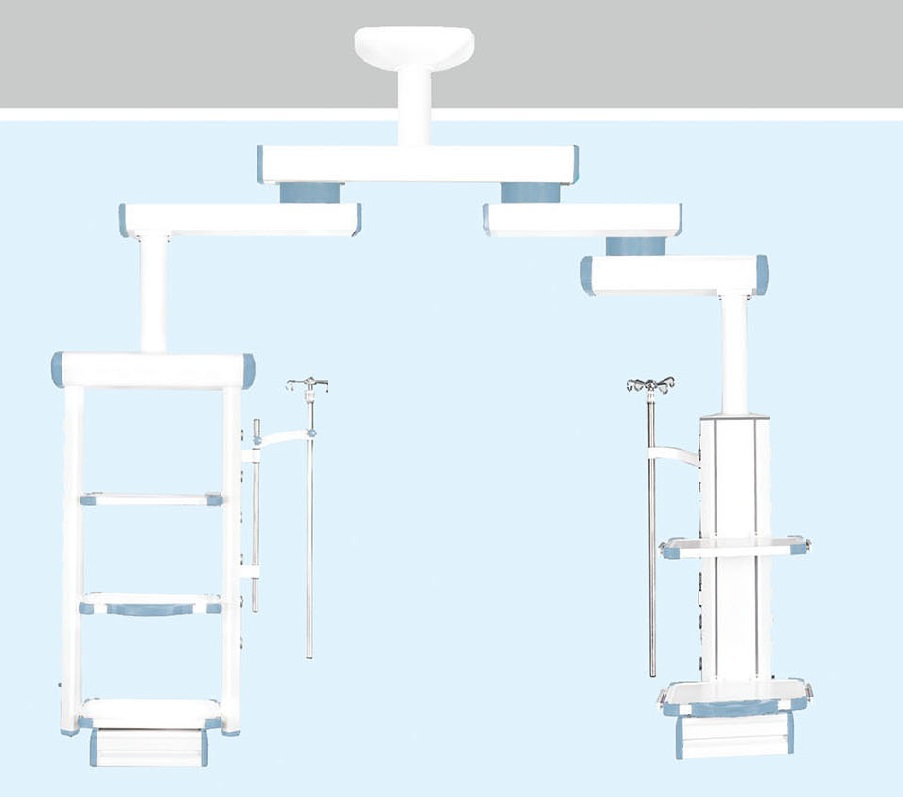

SX-211 three-arm combined crane tower

 1, power supply: AC220V, 50Hz;
 2, cross arm range (radius): 750mm (can be configured according to the requirements of the hospital)
 3, horizontal rotation angle: 0～340°, horizontal arm and terminal box can be rotated separately or simultaneously;
 4, net weight ≥120kg;
 5, instrument platform: dry section configuration:3layer; wet section configuration: 2 layers; height adjustable, rounded corner anti-collision design,Aluminum alloy sheet, surrounded by international standard side rails,
 6、Gas interface configuration: dry section configuration: 2 oxygen, 2 negative pressure suction, 1 air;Wet section configuration: oxygen 2 pcs, negative pressure suction 2 pcs, air 2 pcs a, the color and shape of the interface are different, it has the function of preventing wrong connection; b. The number of insertion and removal is more than 20,000; c. The use of secondary sealing, with three states (pass , Break, pull), can be repaired with air;
 7, power socket: dry section configuration: 6, 220V, 10A; wet section configuration: 7, 220V, 10A
 8, equipotential grounding terminal: dry section configuration: 1; wet section configuration: 1
 9, stainless steel adjustable infusion rod holder: dry section configuration: 1; wet section configuration: 1
 10, dry segment configuration: network and telephone interface each, wet segment configuration: network interface: 1
 10, the main material is made of high-strength aluminum alloy profiles;
 11, the surface treatment adopts electrostatic spraying;
 12, ceiling-mounted installation, stable and firm.
