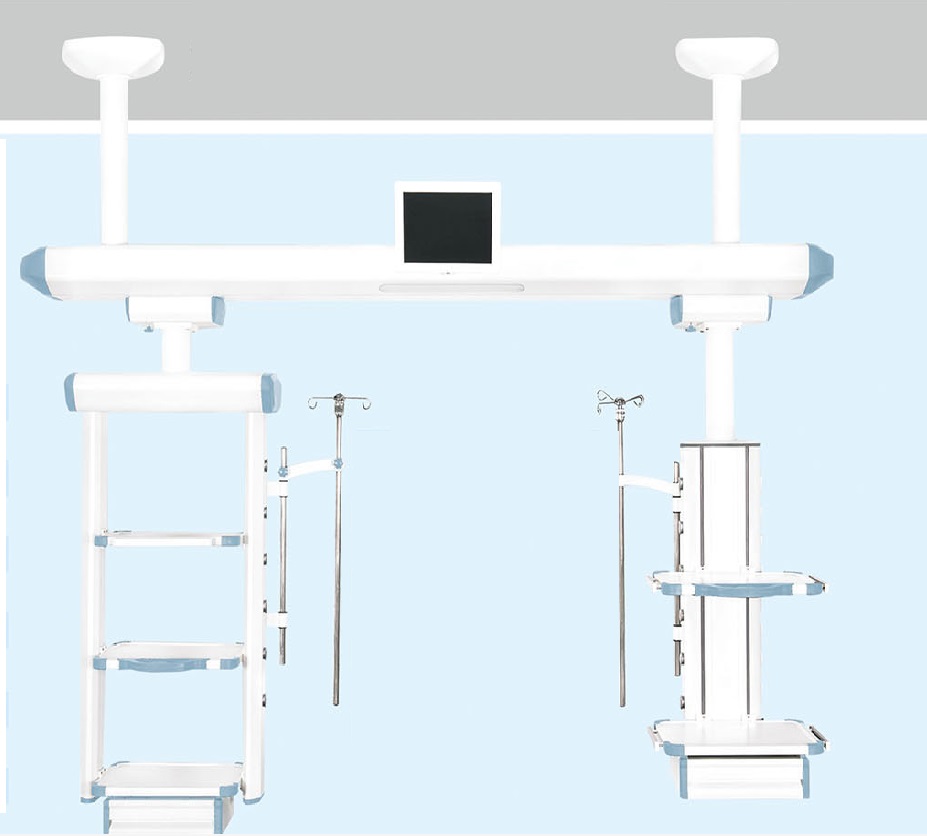

SX-213 beam suspension bridge (dry and wet separation)

 1, power supply: AC220V, 50Hz;
  2, beam length: 2.5m-3.0m
  3, horizontal rotation angle: 0～340°, horizontal arm and terminal box can be rotated separately or simultaneously;
 4, net weight ≥120kg;
 5, instrument platform: dry section configuration:layer; wet section configuration: 2 layers; height adjustable, rounded corner anti-collision design,Aluminum alloy sheet, surrounded by international standard side rails,
 6、Gas interface configuration: dry section configuration: 2 oxygen, 2 negative pressure suction, 1 air;Wet section configuration: oxygen 2 pcs, negative pressure suction 2 pcs, air 2 pcs
       a, the color and shape of the interface are different, it has the function of preventing wrong connection; b. The number of insertion and removal is more than 20,000; c. The use of secondary sealing, with three states (pass , Break, pull), can be repaired with air;
 7, power socket: dry section configuration: 6, 220V, 10A; wet section configuration: 7, 220V, 10A
 8, equipotential grounding terminal: dry section configuration: 2; wet section configuration: 2
